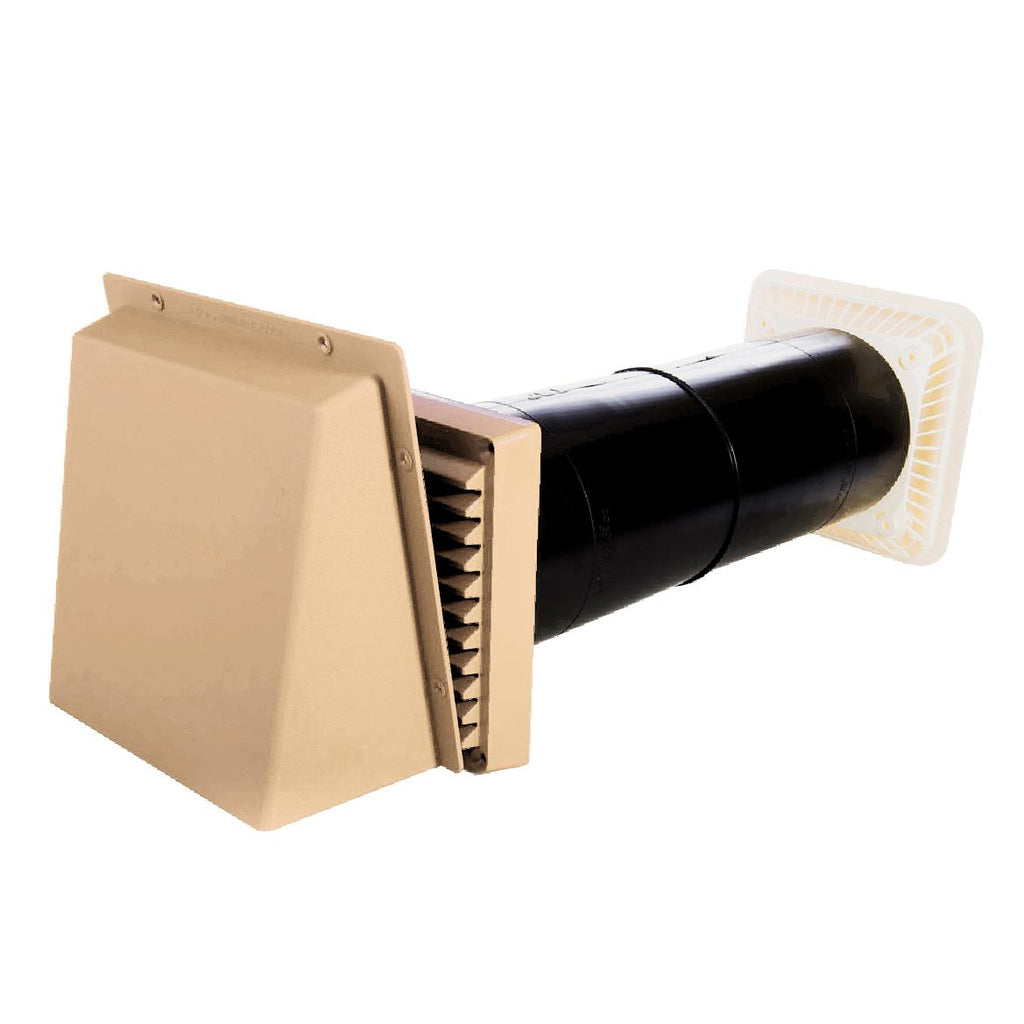

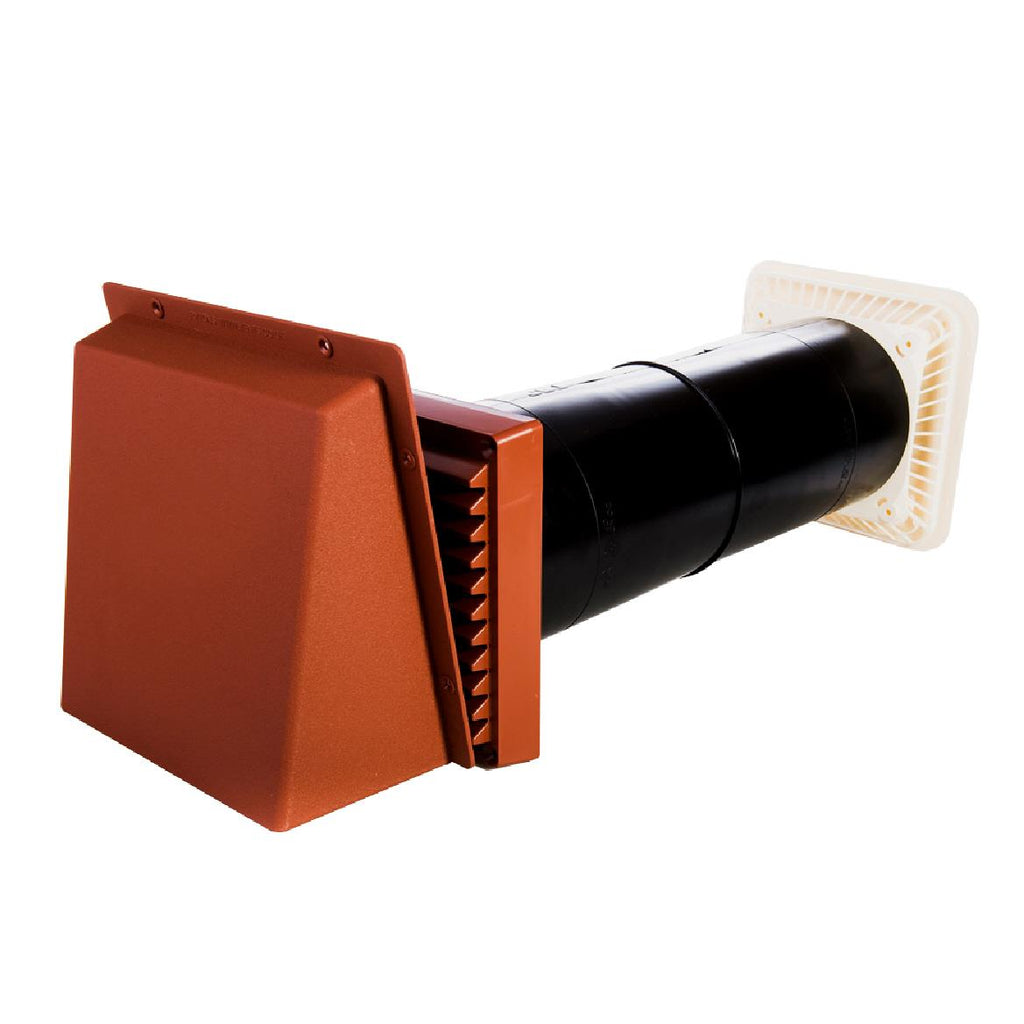

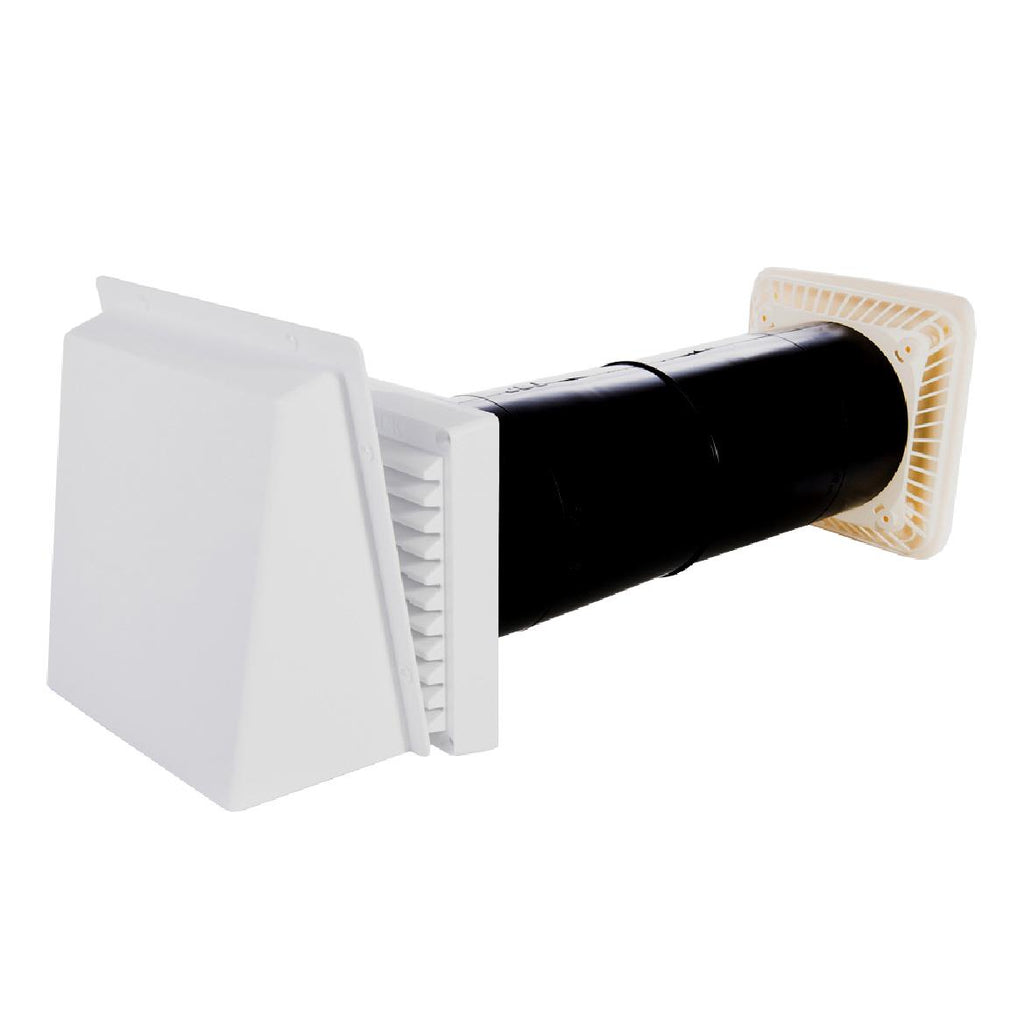

Air Vent Rytons AC10LPCWL Cowled LookRyt AirCore Ventilator
Cowled LookRyt AirCore
127mm x 350mm
Ventilation for heating and gas appliances.
Retro-fitted combustion air vent for boilers, stoves and fires.
Cowl protects against excessive weather conditions and alleviates air blasts through the cavity.
Provides 11,100mm² (111cm²) Equivalent area.
Tested to BS EN 13141-1:2004 and independently verified by the BRE.

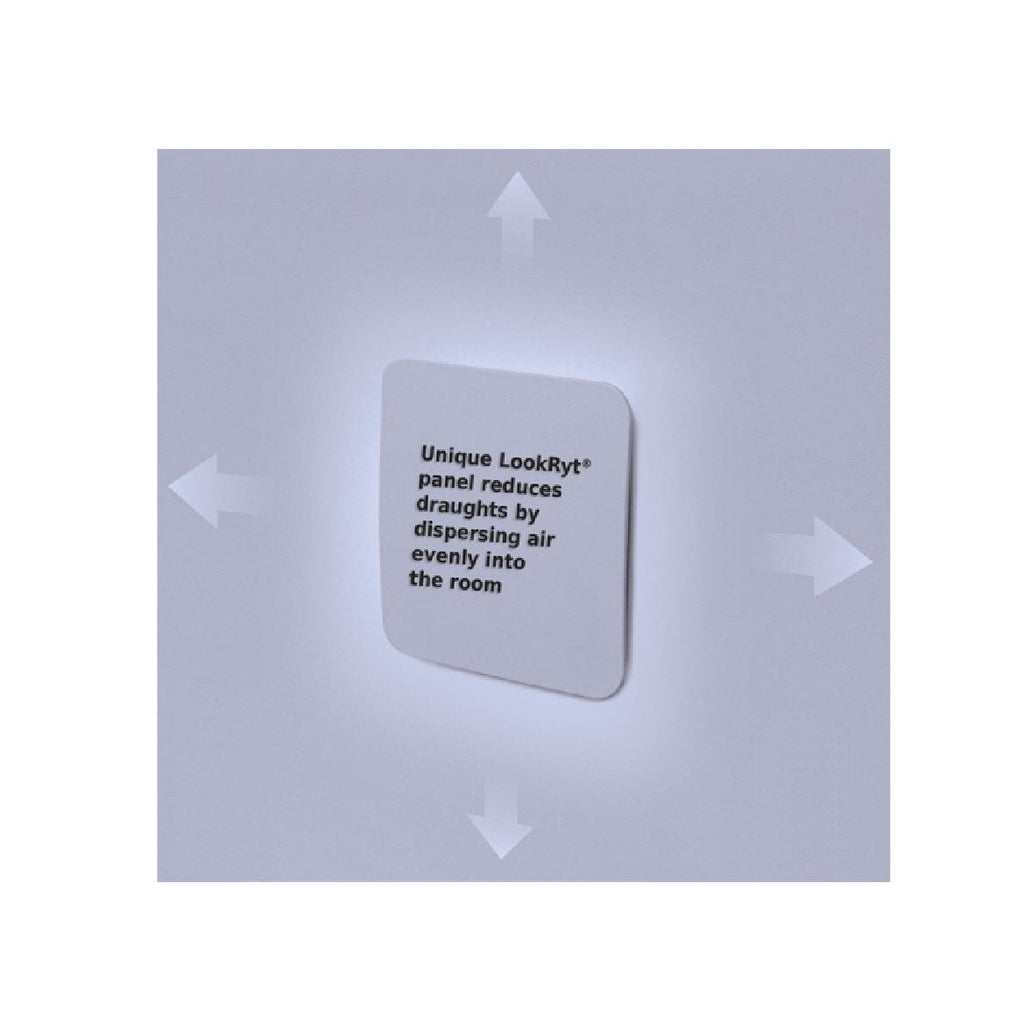

Unique draught reducing panel disperses air evenly for improved comfort.
Paint or wallpaper the panel to match room décor for a discreet appearance.
External water baffle prevents the transfer of water across the cavity.
Cowl and external grille U.V. stabilised to slow down the effects of sunlight.
HETAS approved for use with solid fuel appliances.
LookRyt Panel: Patent No. GB 2490138.

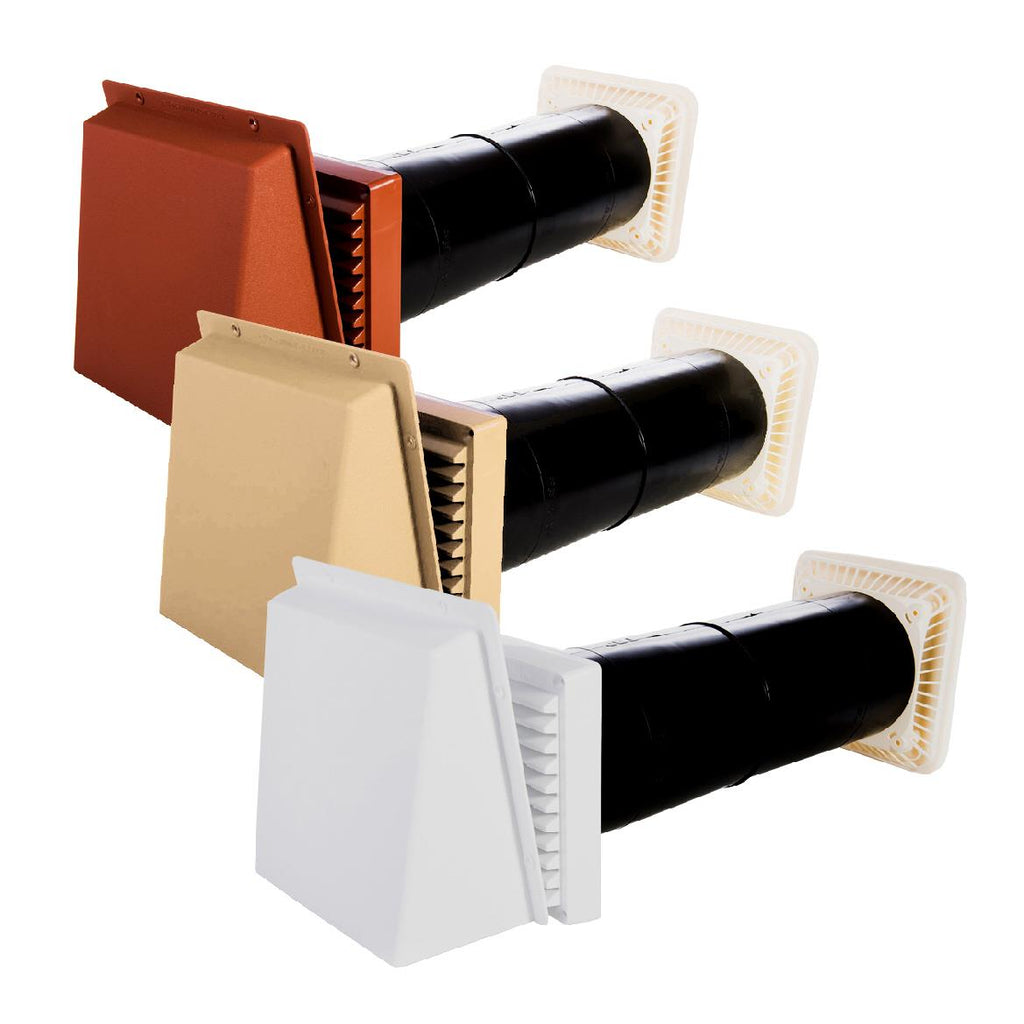

Other colours and core vents available in our shop.
External Cowl: 217 x 190 x 93mm.

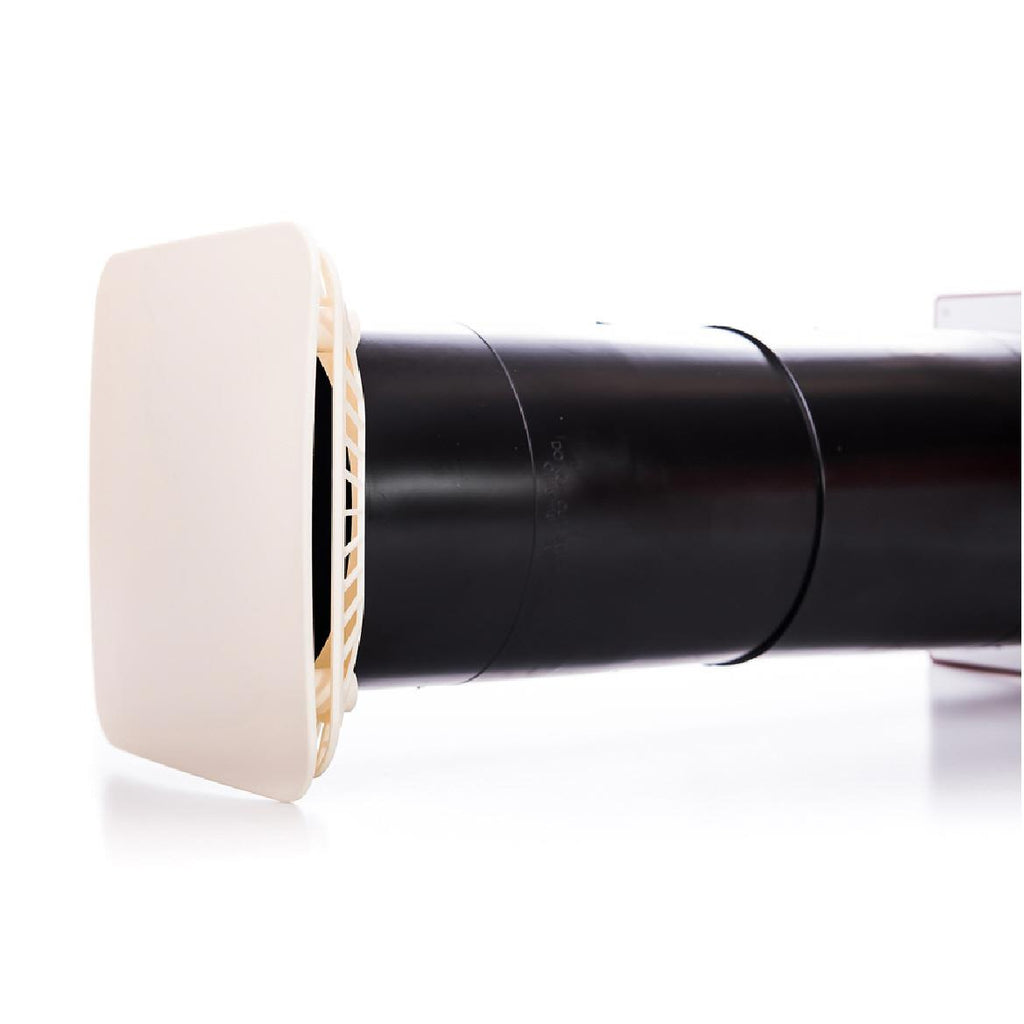

Internal Magnolia LookRyt Panel: 172 x 171mm.
External grille: 166 x 160mm.
Core Tube: Diameter 127mm x Length 358mm.
Core tube can be cut to accommodate wall thickness.
Equivalent area tested to BS EN 13141-1:2004 and independently verified by the BRE.
Also refer to: The Building Regulations, Approved Document J.
The Building (Scotland) Regulations, Mandatory Standard 3.21.
The Building Regulations (Northern Ireland), Technical Booklet L.
British Standard BS 5440-2.
British Standard BS 5871-3 decorative fuel effect gas fires.
