Product Description

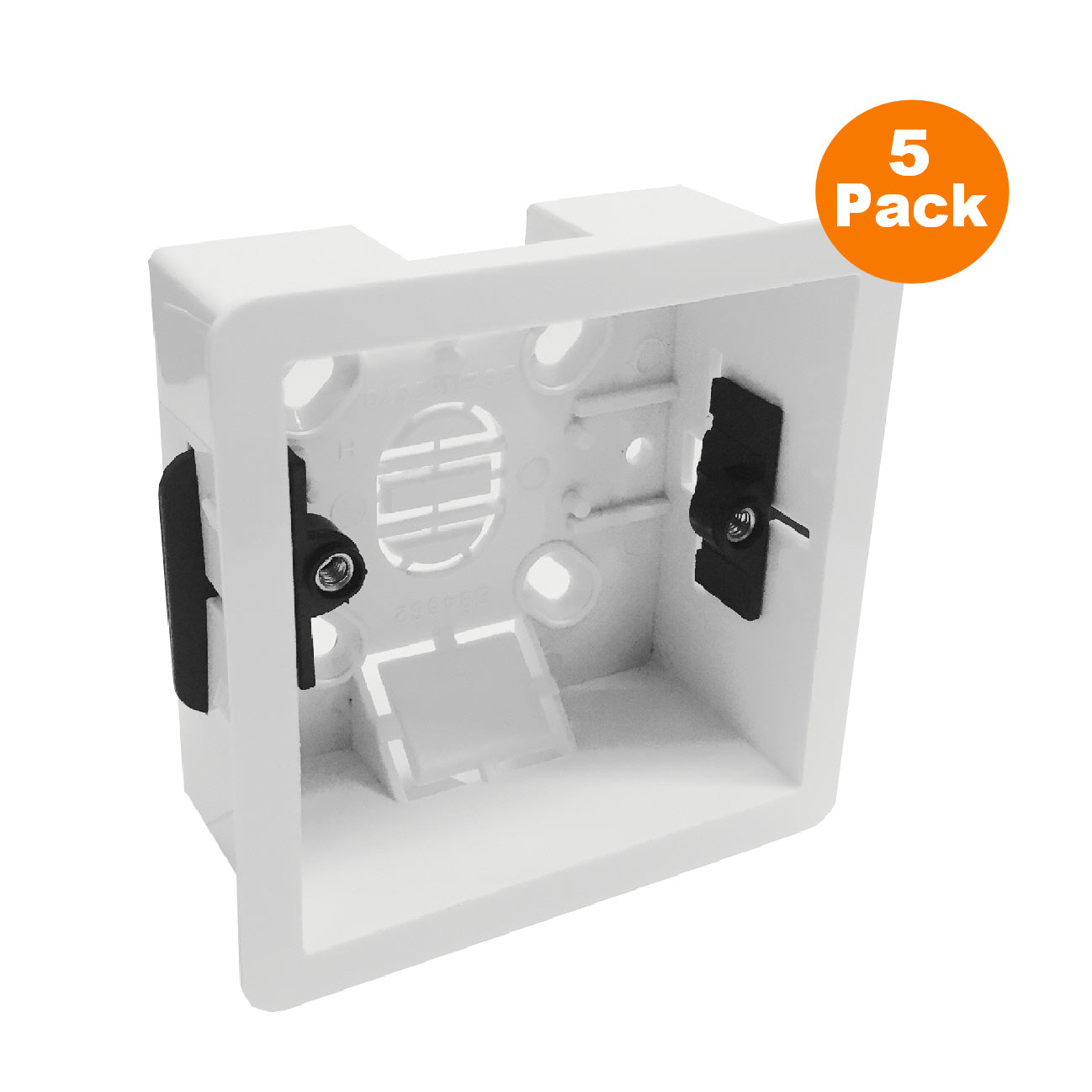

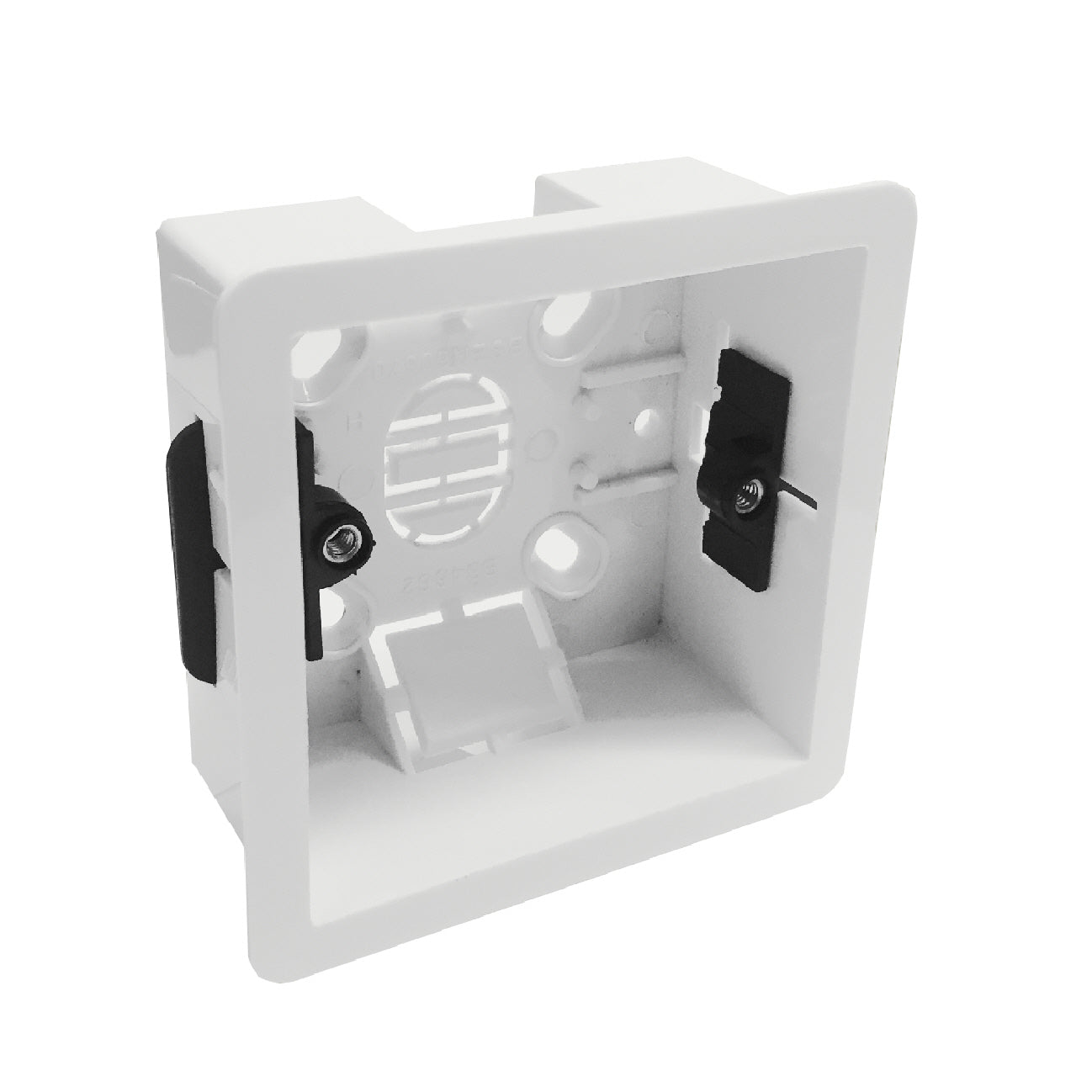

Single Dry Lining Wall Pattress 1 Gang
Menu Options
Single fast fix dry lining plasterboard pattress.
Dry lining box that is ideal for flush mounting in partition walls.
3 knockout cable entries (1 at rear 2 at each side)
For use with 1 gang faceplates .
Conforms to BS EN 60670.
Wall Back boxes are used behind face plates, they allow the face plates to be screwed and secured flush to a wall. This back box should be used with a plaster boarded stud wall, the clips at the side of the back box should be pushed out and when the face plate is screwed on, the back box as well as the face plate are held in position. Simply Cut hole in plasterboard with a pad saw, Place dry lining box in position and push out retaining clips.
Specifications
Electrical Box Material: Plastic
Electrical Box Mounting: Dry Lining / Wall
Internal Depth: 35mm
No. of Gangs: 1
Colour: White
Depth: 35mm
Height: 73mm
Width: 73mm
Suitable for plasterboard thicknesses of 6 to 18mm
