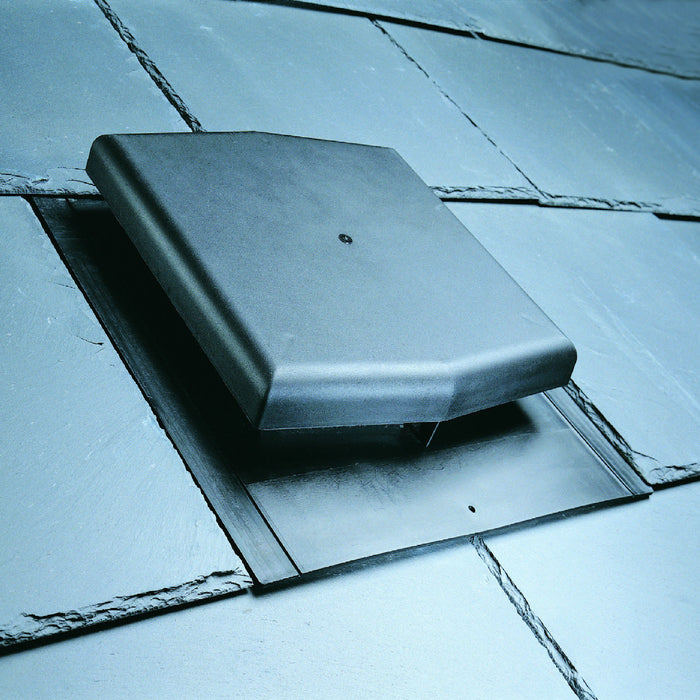

Slate Roof Tile Vent with Pipe Adapter Kits

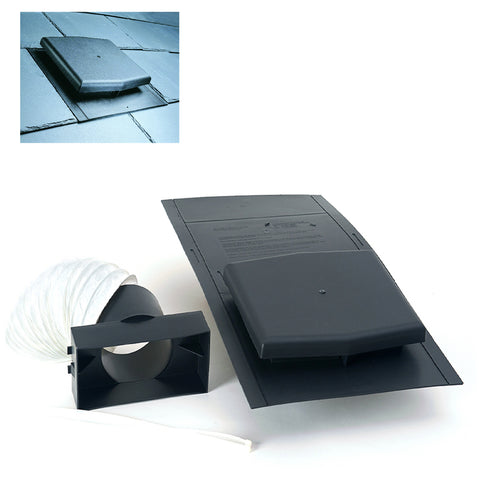

10K Slate Roof Tile Vent Ventilator & Adapter Kit
for use with Extractor fans & Soil Pipes
Can be trimmed to various slate sizes
Low profile design to blend in with most dwelling.
Slate grey blends with most man-made or natural slates.
Clearly marked for cutting to various slate sizes.
610 x 305mm and 510 x 255mm.
Prevents entry of birds and large insects.
Can be used for soil ventilation or extractor fans.
Complies fully with relevant Building Regulations and British standards.
Adaptor pipe kit with flexible PVC pipe and 2 cable ties.
Flexible pipe is suitable for 100mm or 120mm fittings & 500mm Long.
Ideal for new build and existing roof applications.
For replacement of one normal roof slate to provide a ventilator
Ventilating a roof space at low level or high level
Connection to mechanical extraction from kitchen/bathrooms
Ventilation outlet for soil vent pipe
Features & benefits
Free vent area of 10,000mm²
Suits slate sizes 610 x 305mm or 510 x 255mm
Inconspicuous low hood design
Can be combined with pipe adaptor kit to enable connection of 100mm soil vent pipe and/or mechanical extractor
Manufactured to BS EN ISO 9001 : 2008
Satisfies all NHBC Standards 2008 Edition
Complies with all relevant Building Regulations
Meets all relevant British Standards
Material & colour choice
Manufactured from polypropylene
Available in anthracite
